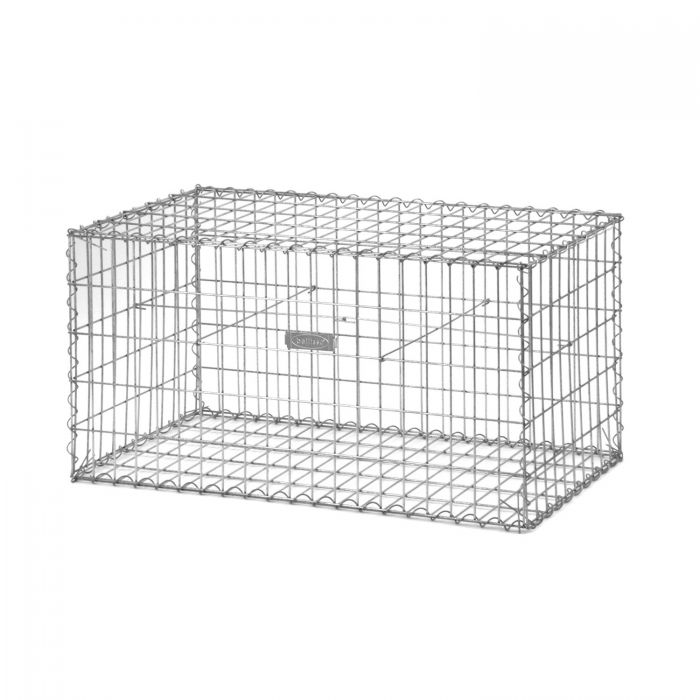

Woven Gabion Basket

CURRENT SITE PRODUCTSOURCE: PRODUCT DOSSIER

Used for retaining walls, temporary bridge abutments, beach reinforcement.

Steel wire

KEY FEATURES

Filled with stone for erosion resistance

12 weaving machines, ~5,000 m²/day/machine

CNC cutting, 30% faster than manual

Flexible structure adapts to ground settlement without cracking

Good water permeability — eco-friendly and supports vegetation growth

No water or electricity needed on site — simple, low-cost installation

Specifications

Materials	Steel wire
Mesh Size	60×80, 80×100, 100×120, 120×150
Surface Treatments	Galvanized wire; Galfan wire; PVC coated wire
Mesh Wire (Mm)	2.0, 2.4, 2.7, 3.2, 3.4, 4.0
Selvedge Wire (Mm)	2.4, 2.7, 3.0, 3.4, 4.0
Lacing Wire (Mm)	2.0, 2.2, 2.5
Gabion Size (M)	1×1×1, 1×1×0.5, 2×1×1, 3×1×1, 4×1×1, 2×1×0.3
Zinc Coating	Hot-dip galvanized ≥245 g/m²

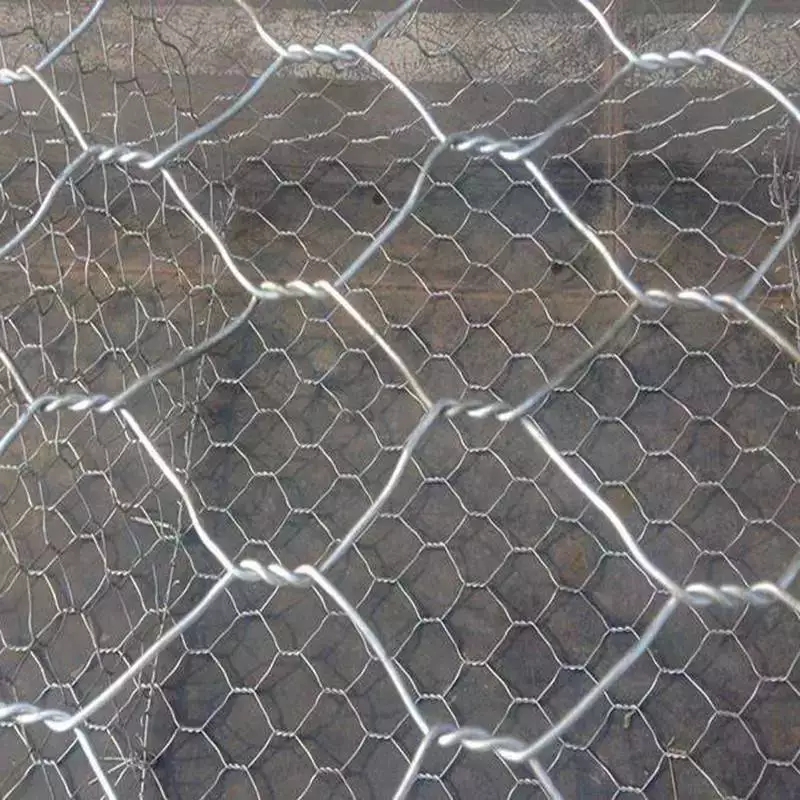

Structure	Hexagonal double-twist weave

Retaining walls

Temporary bridge abutments

Beach reinforcement

River bank revetment

Landscaped boundaries

Slope protection

Road retaining structures

What gabion sizes are available?

Standard sizes include 1×1×1m, 1×1×0.5m, 2×1×1m, 3×1×1m, 4×1×1m and 2×1×0.3m.

What wire diameters are used for the mesh, selvedge, and lacing wire?

Mesh wire 2.0–4.0mm, selvedge wire 2.4–4.0mm, lacing wire 2.0–2.5mm.
