Solutions by Industry
Seven industries, mapped to the product lines JoyLink actually manufactures for each of them. The footage further down this page is these same products at work: perimeter fencing, gabion riverbank protection, industrial screening and architectural mesh.
Security & Perimeter Protection
Perimeter Security, Engineered To Deter
Construction & Infrastructure
Structural Mesh For The Built Environment
Agriculture & Livestock
Fencing Built For Working Land
Filtration & Processing
Mesh And Belting For Process Lines

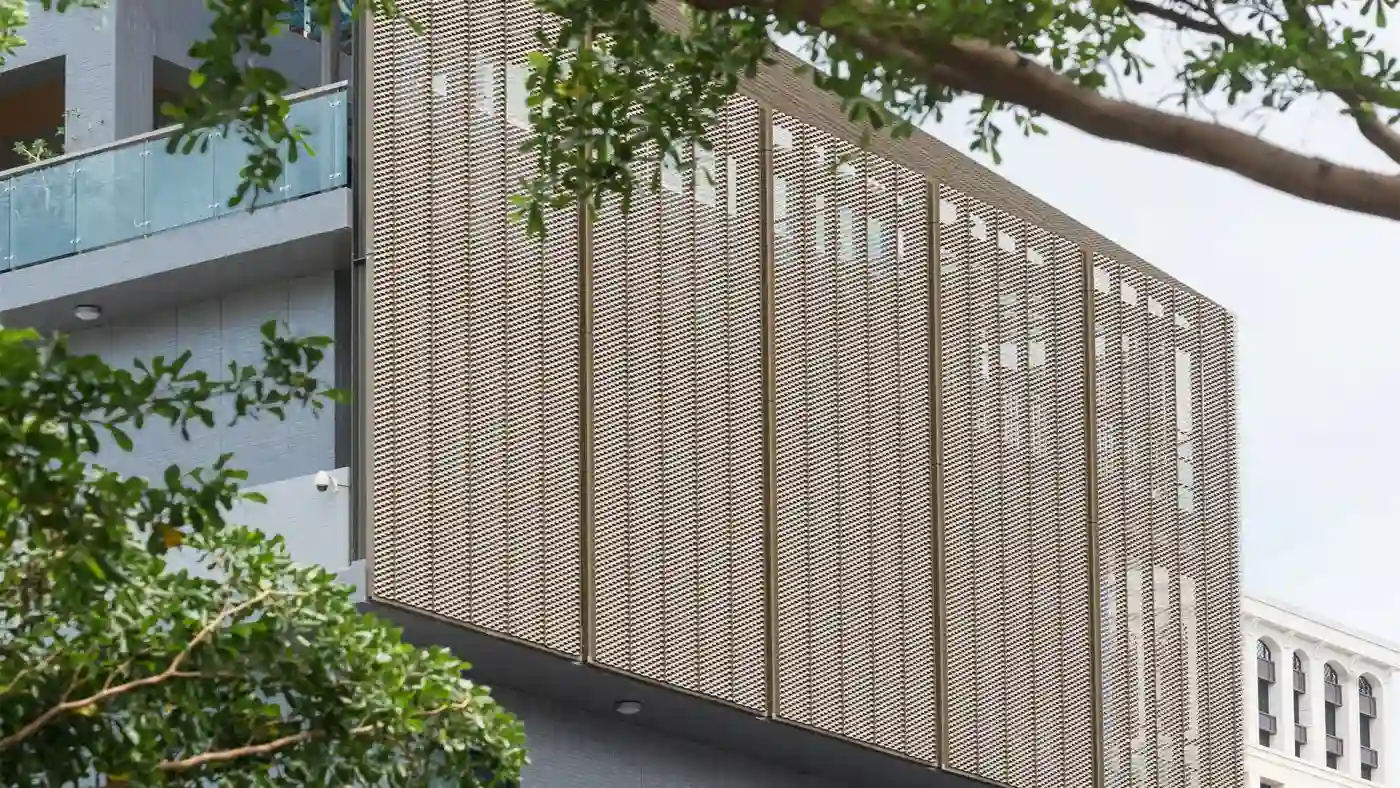

Architecture & Facades
Mesh As A Design Material
Water & Soil Conservation
Slope, Riverbank & Flood Protection

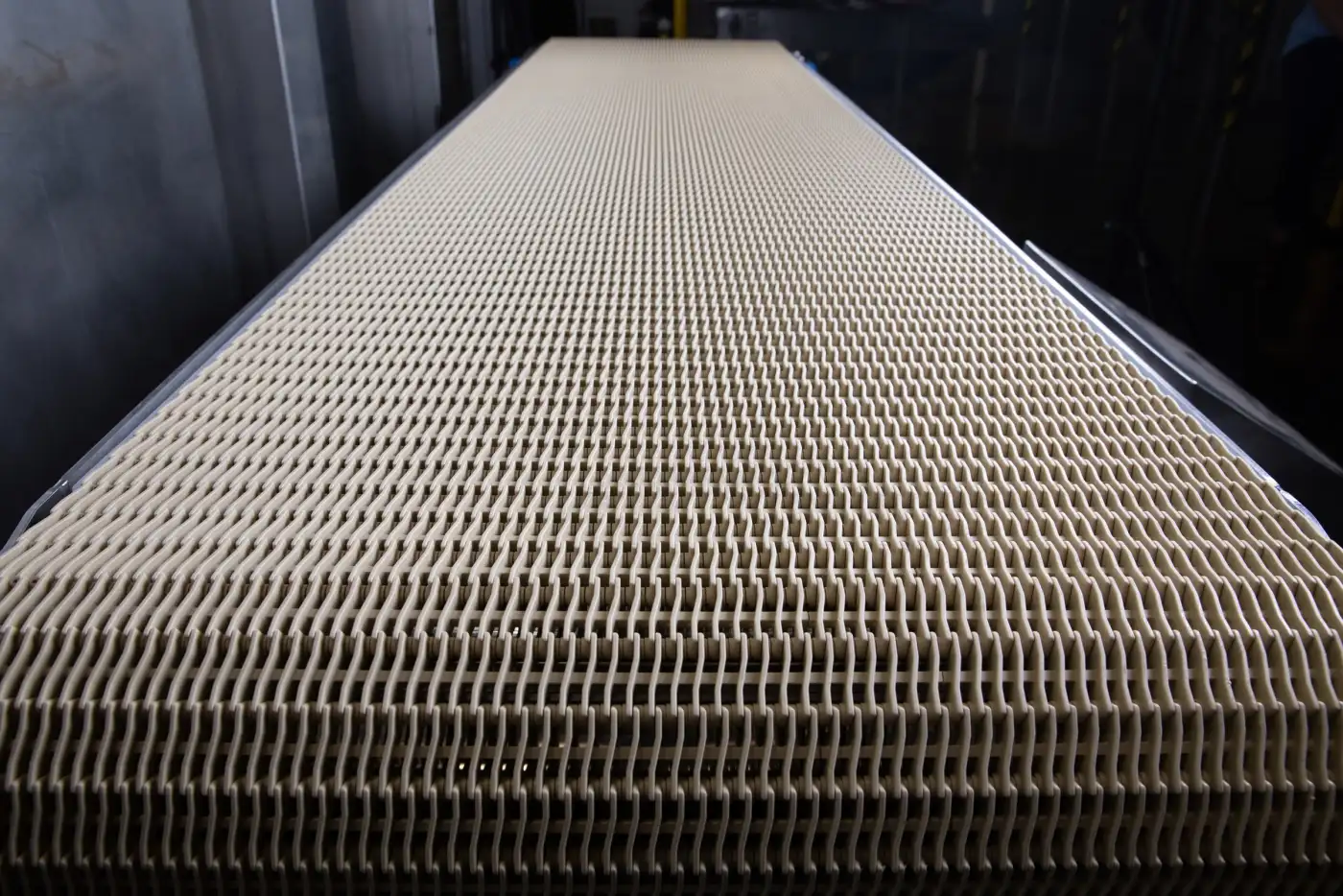

Food & Pharma Processing
Hygienic-Grade Mesh And Belting
These Products In Service
Airport perimeter fencing, highway chain link, gabion riverbank protection, an industrial trommel screen and architectural mesh — the clip that used to play silently at the top of this page, now yours to start.
Application Knowledge Tree
Typical industry configurations compiled by JoyLink, not verified supply specifications, certifications or capacity commitments. Security tiers below are JoyLink’s own editorial ordering for navigating this page — they are not a rating against LPS 1175, ASTM, EN or any published standard. Project specifications are confirmed against your drawings during the RFQ review, not from this page.
L1Boundary DemarcationMarks a boundary or contains animals and foot traffic; not intended to stop a deliberate intruder.6 products
Chain Link MeshResidential · Sports courts · Factories · Farms · Large-area perimeters▶ video
- Typical configuration
- 40-75mm aperture; 2-4mm wire; 1-3m+ heights
- Material
- Low-carbon steel wire
- Finish
- Galvanized / PVC / PE coated
- Applications
- Residential, Sports courts, Factories, Farms, Large-area perimeters
- Security tiers
- L1 – L2 – L3
Welded MeshResidential · Industrial · Horticulture · Animal enclosures · Machine guarding▶ video
- Typical configuration
- Aperture, wire diameter and height combined to suit the application
- Material
- Low-carbon steel wire / stainless steel
- Finish
- Galvanized / PVC / powder coated
- Applications
- Residential, Industrial, Horticulture, Animal enclosures, Machine guarding
- Security tiers
- L1 – L2 – L3

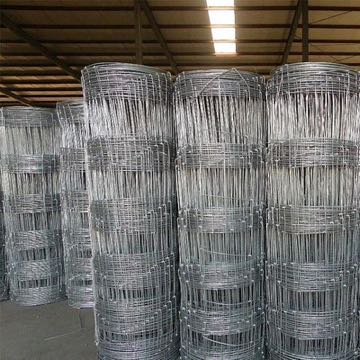

Field FenceCattle · Sheep · Deer · Farms · Ranches▶ video
- Typical configuration
- Graduated aperture; height, line wires and roll length set by the livestock
- Material
- High-tensile galvanized steel wire
- Finish
- Hot-dip galvanized
- Applications
- Cattle, Sheep, Deer, Farms, Ranches
- Security tiers
- L1 – L2
Horse FenceEquestrian facilities · Ranches▶ video
- Typical configuration
- Prioritises hoof-trap resistance and smooth knots
- Material
- High-tensile wire / knotted mesh
- Finish
- Hot-dip galvanized
- Applications
- Equestrian facilities, Ranches
- Security tiers
- L1 – L2

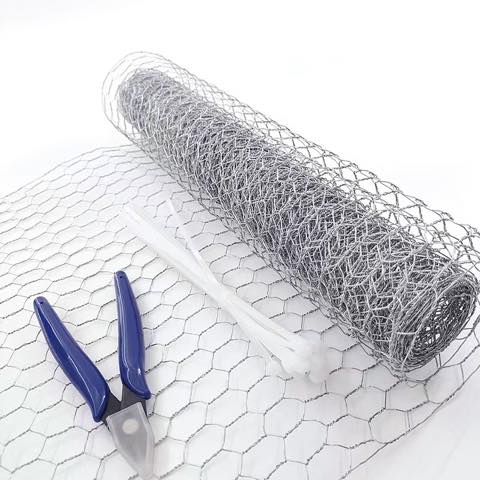

Hexagonal MeshPoultry · Horticulture · Small animals▶ video
- Typical configuration
- 1/2", 1" and 2" apertures common
- Material
- Low-carbon steel wire
- Finish
- Galvanized / PVC coated
- Applications
- Poultry, Horticulture, Small animals
- Security tiers
- L1
Temporary FenceConstruction sites · Events · Temporary separation▶ video
- Typical configuration
- Panel size, tube diameter and feet set by the destination market
- Material
- Welded steel wire + steel tube
- Finish
- Hot-dip galvanized
- Applications
- Construction sites, Events, Temporary separation
- Security tiers
- L1 – L2
No published specification page — ask our team about availability.Discuss this application →
L2Basic DelayDelays climbing or cutting without tools; typical of plant, campus and school perimeters.8 products
3D Curved FenceFactories · Warehouses · Residential · Campuses · Schools · Roadsides▶ video
- Typical configuration
- 50×200mm mesh; 4-5mm wire; 1.0-2.4m heights common
- Material
- Low-carbon steel wire
- Finish
- Hot-dip galvanized + powder coating / PVC
- Applications
- Factories, Warehouses, Residential, Campuses, Schools, Roadsides
- Security tiers
- L2 – L3
Chain Link MeshResidential · Sports courts · Factories · Farms · Large-area perimetersdetailed under L1
Welded MeshResidential · Industrial · Horticulture · Animal enclosures · Machine guardingdetailed under L1
Double Wire Fence 656 / 868Schools · Stadiums · Industrial parks · Commercial facilities▶ video
- Typical configuration
- 6/5/6 or 8/6/8mm wire; 50×200mm mesh common
- Material
- Low-carbon steel wire
- Finish
- Hot-dip galvanized + powder coating
- Applications
- Schools, Stadiums, Industrial parks, Commercial facilities
- Security tiers
- L2 – L3
Barbed WireFarms · Industrial perimeters · High-security toppings▶ video
- Typical configuration
- Strand count, barb spacing and wire gauge set per project
- Material
- Galvanized steel wire
- Finish
- Hot-dip galvanized / PVC coated
- Applications
- Farms, Industrial perimeters, High-security toppings
- Security tiers
- L2 – L3 – L4
Field FenceCattle · Sheep · Deer · Farms · Ranchesdetailed under L1
Horse FenceEquestrian facilities · Ranchesdetailed under L1
Temporary FenceConstruction sites · Events · Temporary separationdetailed under L1
L3Reinforced DelayDesigned against deliberate attack with hand tools, usually combined with a reinforced top and engineered posts.8 products
3D Curved FenceFactories · Warehouses · Residential · Campuses · Schools · Roadsidesdetailed under L2
358 Anti-Climb FencePrisons · Airports · Military sites · Energy facilities · Data facilities▶ video
- Typical configuration
- 76.2×12.7mm typical aperture; 4mm wire common
- Material
- High-tensile or low-carbon steel wire
- Finish
- Hot-dip galvanized + powder coating
- Applications
- Prisons, Airports, Military sites, Energy facilities, Data facilities
- Security tiers
- L3 – L4
Chain Link MeshResidential · Sports courts · Factories · Farms · Large-area perimetersdetailed under L1
Welded MeshResidential · Industrial · Horticulture · Animal enclosures · Machine guardingdetailed under L1
Double Wire Fence 656 / 868Schools · Stadiums · Industrial parks · Commercial facilitiesdetailed under L2
Palisade FenceIndustrial sites · Railways · Energy facilities · Critical infrastructure▶ video
- Typical configuration
- Height and section sizes set by the security requirement
- Material
- Structural steel
- Finish
- Hot-dip galvanized + coating
- Applications
- Industrial sites, Railways, Energy facilities, Critical infrastructure
- Security tiers
- L3 – L4
No published specification page — ask our team about availability.Discuss this application →Barbed WireFarms · Industrial perimeters · High-security toppingsdetailed under L2

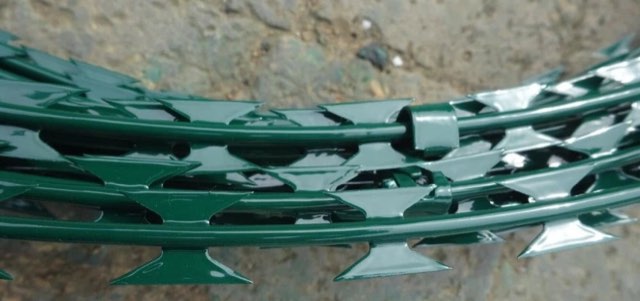

Razor WirePrisons · Military sites · Critical infrastructure▶ video
- Typical configuration
- Coil diameter, blade profile and Concertina / Flat Wrap form set per project
- Material
- Galvanized steel core + blade strip / stainless steel
- Finish
- Hot-dip galvanized / stainless
- Applications
- Prisons, Military sites, Critical infrastructure
- Security tiers
- L3 – L4
L4High SecurityLayered perimeters for critical facilities, normally achieved by combining products rather than by any single product.4 products
358 Anti-Climb FencePrisons · Airports · Military sites · Energy facilities · Data facilitiesdetailed under L3
Palisade FenceIndustrial sites · Railways · Energy facilities · Critical infrastructuredetailed under L3
Barbed WireFarms · Industrial perimeters · High-security toppingsdetailed under L2
Razor WirePrisons · Military sites · Critical infrastructuredetailed under L3
ENGEngineering GradeSelected against hydraulic and civil engineering design; not rated on the security scale.1 products
GabionRiverbanks · Slopes · Coastlines · Retaining walls▶ video
- Typical configuration
- Set by the hydraulic and civil engineering design
- Material
- Galvanized or Zn-Al coated steel wire
- Finish
- Heavy galvanized / Zn-Al / PVC coated
- Applications
- Riverbanks, Slopes, Coastlines, Retaining walls
- Security tiers
- ENG
APPApplication SelectedSelected by material, medium and service conditions; not rated on the security scale.1 products
Stainless Steel Wire MeshCoastal · Food processing · Chemical processing · Filtration▶ video
- Typical configuration
- Mesh count, wire diameter and weave set by the application
- Material
- 304 / 316 / 316L
- Finish
- Inherently corrosion resistant (no coating)
- Applications
- Coastal, Food processing, Chemical processing, Filtration
- Security tiers
- APP
