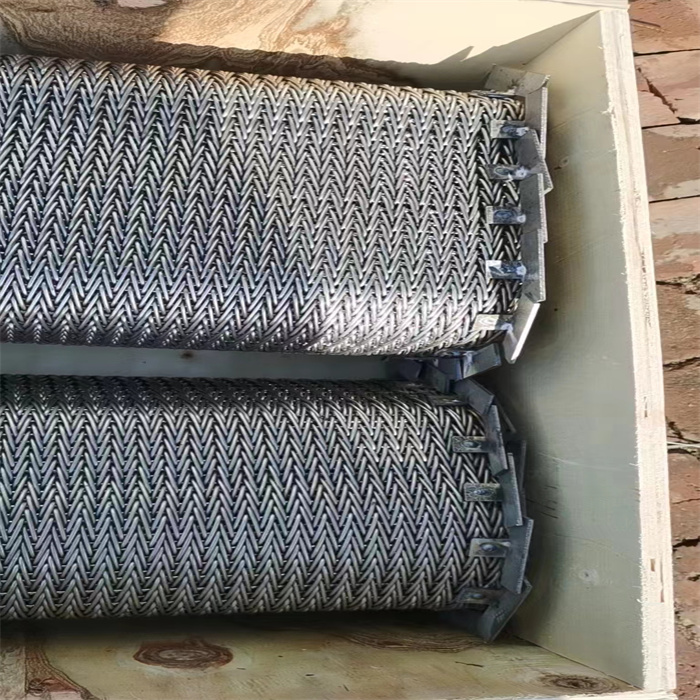

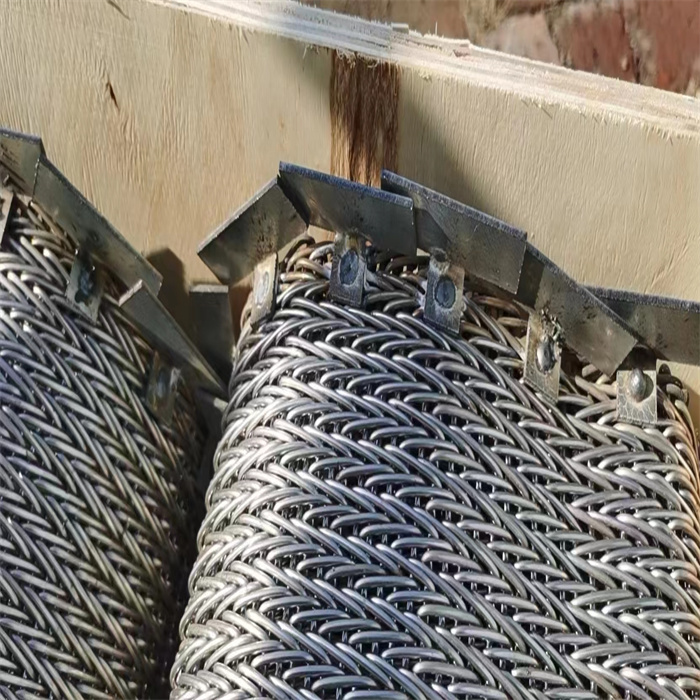

Wire Mesh Conveyor Belt
FILTRATION & CONVEYING

Wire Mesh Conveyor Belt

Used for biscuit/chocolate/bread food processing, cooling and drying lines, sintering, brazing, annealing (elevated temp.).

SS304SS316Spring wireMusic wire
KEY FEATURES
Custom-made to opening area and wire gauge
High open area (up to 70–85% for ladder belts)
Request a Quote for Wire Mesh Conveyor BeltDownload Catalog

Specifications

MaterialsSS304; SS316; Spring wire; Music wire
Wire Diameter0.8–3.0
Weave TypesBalanced weave; Double balanced weave; Conventional (chain link) weave; Compound balanced weave (cordweave); Flat wire belting; Flat-flexing belting; Chain drive belting

Applications

Biscuit/chocolate/bread food processing
Cooling and drying lines
Sintering, brazing, annealing (elevated temp.)
Ovens, quench tanks, washers, fryers, freezers

Frequently Asked Questions

What's the difference between balanced weave and double balanced weave?
Balanced weave uses left- and right-hand spirals joined by a crimped connecting rod for straight tracking; double balanced weave interweaves two 12-pitch spirals into one 24-pitch belt, mainly for elevated-temperature sintering, brazing and annealing.
What wire diameters are available?
0.8mm to 3.0mm, custom-made to the required opening area and gauge.
