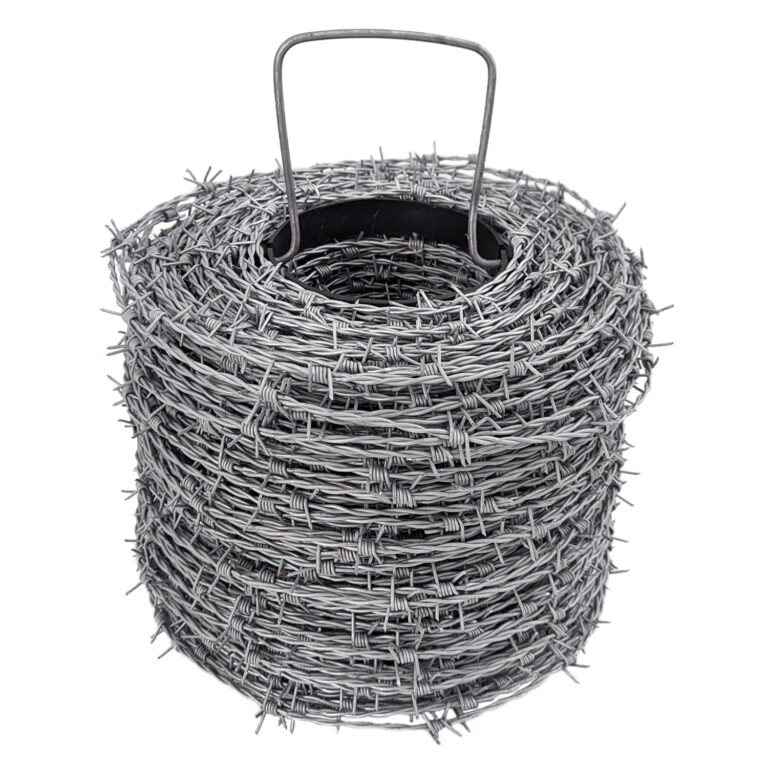

Barbed Wire
FENCING SYSTEMS

Barbed Wire

PRODUCT LINE EXPANSIONSOURCE: PRODUCT DOSSIER

Used for military/border security, prisons and detention centers, airports and critical infrastructure.

High-carbon steel wire (65Mn)Low-carbon steel wire (Q195/Q235)
KEY FEATURES
High security deterrence
Corrosion resistant
Flexible installation
Cost-effective vs. electric fence/concrete wall
Request a Quote for Barbed WireDownload Catalog

Specifications

MaterialsHigh-carbon steel wire (65Mn); Low-carbon steel wire (Q195/Q235)
Wire DiameterCore 2.0–3.5; barb 1.0–2.5
Surface TreatmentsElectro-galvanized; Hot-dip galvanized; PVC coated; Stainless steel
Barb Spacing (Mm)50–150

Applications

Military/border security
Prisons and detention centers
Airports and critical infrastructure
Industrial parks
Farms and ranches
Private residences

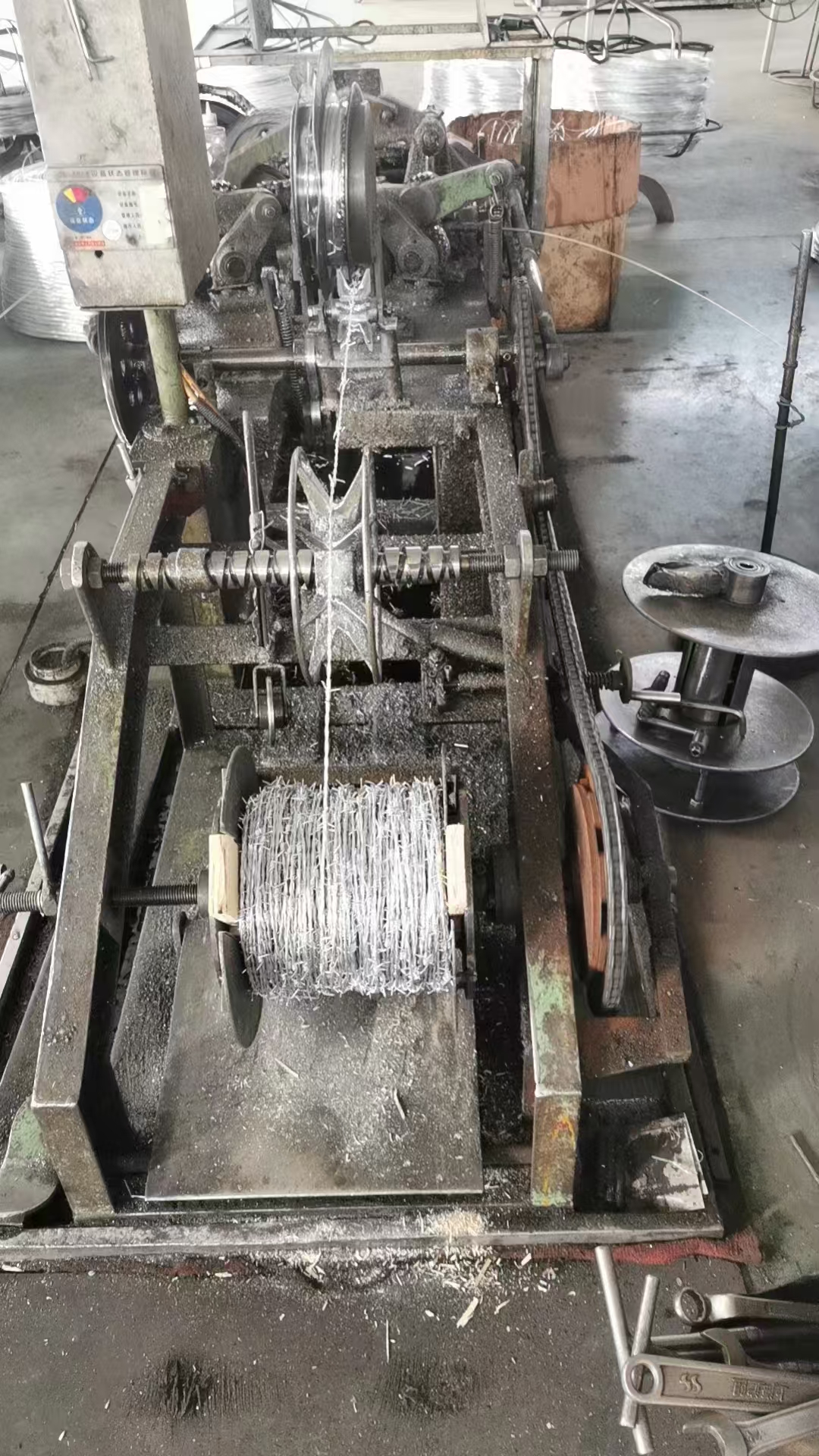

Production Video

Barbed Wire · production line

Frequently Asked Questions

What's the difference between the core wire and the barb wire?

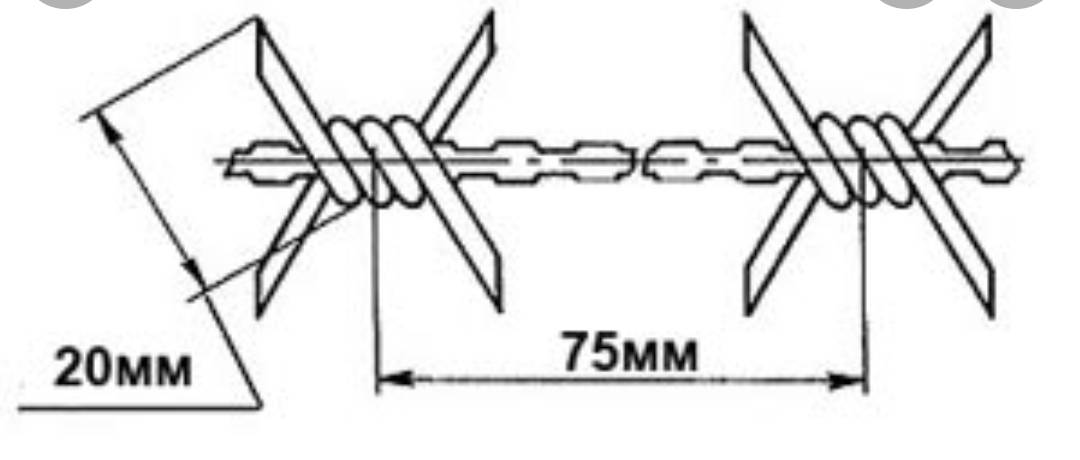

The core wire is thicker (2.0–3.5mm, high- or low-carbon steel) for tensile strength; the barb wire is thinner (1.0–2.5mm) and helically wrapped around the core at 50–150mm spacing.
Which surface treatment suits a coastal or humid site?
Hot-dip galvanizing (40–60μm coating) is rated for humid or coastal areas; electro-galvanizing (8–12μm) is intended for general dry environments only.
