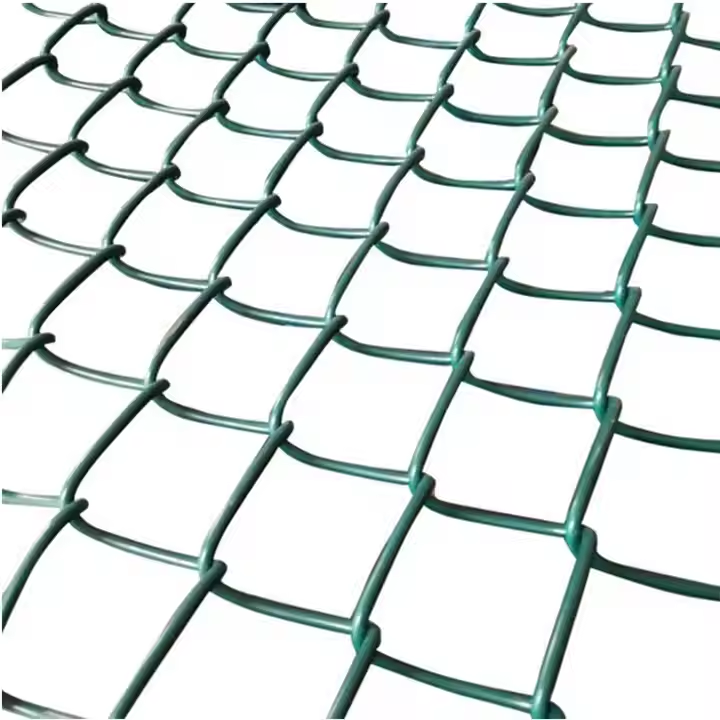

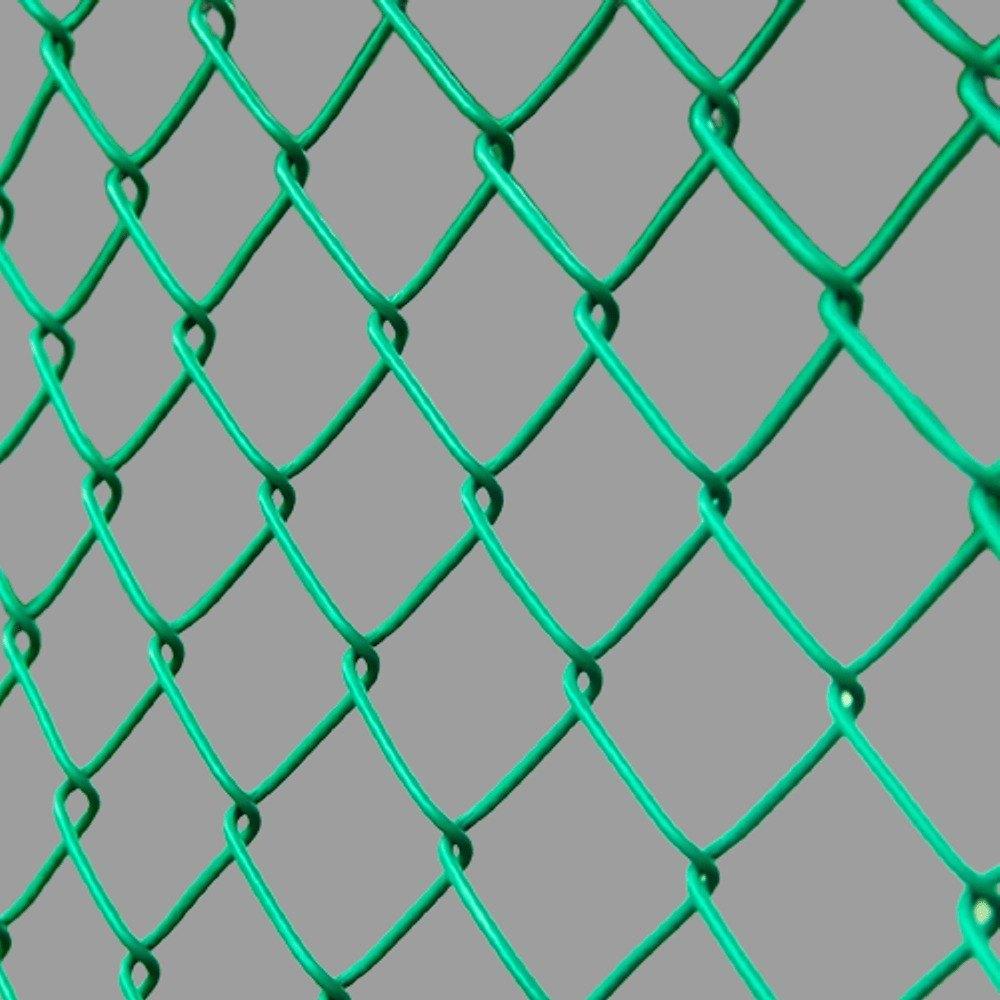

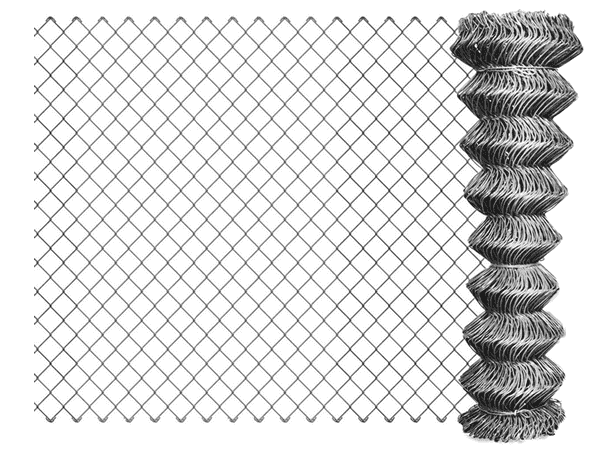

Chain Link Wire Mesh

CURRENT SITE PRODUCTSOURCE: PRODUCT DOSSIER

Also known as: Cyclone wire mesh, Diamond wire mesh

Used for residential fencing, commercial/industrial site security, sports field enclosures.

Low-carbon steel wireGalvanized wireStainless steel wire

KEY FEATURES

Corrosion resistant

Long service life

Flexible and durable

Impact resistant with strong cushioning from the woven structure

Uniform, attractive mesh face with color options

Can be cut and assembled on site to fit irregular terrain

Specifications

Materials	Low-carbon steel wire; Galvanized wire; Stainless steel wire
Wire Diameter	0.5–5.00 (18#–7#, catalog also lists gauges down to 0.5mm)
Mesh Size	25–100 (1″–4″)
Surface Treatments	Hot-dip galvanized; Electro-galvanized; PVC coated (green/black/white)
Roll Length (M)	0.5–100+
Roll Width (M)	0.5–5.0
Height (M)	1–6
Structure	Chain-link woven mesh, on-site assembly

Residential fencing

Commercial/industrial site security

Sports field enclosures

Highway and railway barriers

Farmland fencing

Parks

Campus partitioning

Slope protection

Landscaping and greening projects

Livestock enclosures

Chain Link Wire Mesh · production line

What wire gauge range does Chain Link Fence use?

18# to 7# wire, roughly 1.20–5.00mm diameter, with mesh sizes from 1" to 4" (25–100mm).

What colors are available for PVC-coated chain link?

Green, black, or white PVC coating over the base wire.
