Welded Wire Mesh (Rolls & Panels)

CURRENT SITE PRODUCTSOURCE: PRODUCT DOSSIER

Also known as: Welded wire fabric, Welded mesh panel

Used for concrete reinforcement, garden and farm fencing, poultry and animal enclosures.

Low-carbon steel wireStainless steel wireGalvanized wire

KEY FEATURES

Flexible (rolls) or rigid (panels)

Uniform mesh, easy to cut and weld

Long service life with anti-corrosion finish

Hot-dip galvanized coating rated for 15–20 years outdoors; electro-galvanized is the economical option

Full size range with custom specs available

High rigidity and impact resistance that holds shape over long-term use

Request a Quote for Welded Wire Mesh (Rolls & Panels)Download Catalog

Specifications

Materials	Low-carbon steel wire; Stainless steel wire; Galvanized wire
Wire Diameter	0.3–6.0 mm (up to 4.0mm for rolls; panels available up to 6.0mm)
Mesh Size	1/4″–4″ for rolls (approx. 6–100mm); panels available up to 200×200mm
Surface Treatments	Hot-dip galvanized; Electro-galvanized; PVC coated; Stainless steel (natural finish, untreated)
Roll Width (M)	0.5–2.5
Roll Length (M)	5–50
Zinc Coating	Hot-dip galvanized 40–300 g/m²; electro-galvanized (thinner, more economical)
Panel Size (M)	1×2, 1.2×2.4 and other sizes, customizable

Applications

Concrete reinforcement

Garden and farm fencing

Poultry and animal enclosures

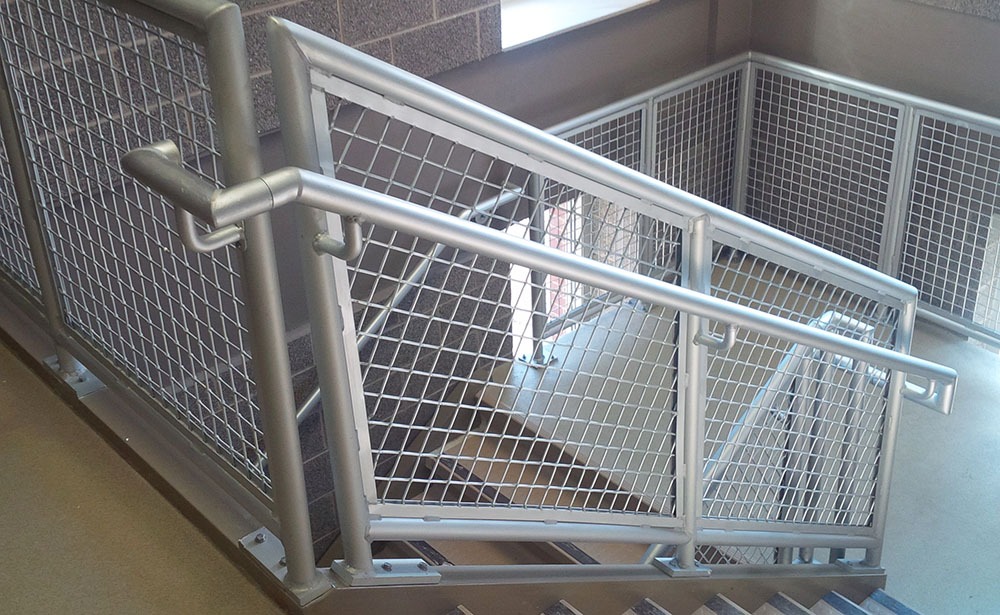

Security fencing

Machinery guards

Window and railing protection

Wall plaster crack prevention

Orchard enclosures

Shelving and rack partitions

Production Video

Welded Wire Mesh (Rolls & Panels) · production line

Frequently Asked Questions

Do you supply welded wire mesh as rolls or panels?

Both — flexible rolls for large-coverage applications like garden and farm fencing, and rigid panels for permanent structures like security fencing and machinery guards.

What surface treatments are available?

Hot-dip galvanized, electro-galvanized, or PVC coated; stainless steel mesh is typically left untreated.
