3D Curved Fence

PRODUCT LINE EXPANSIONSOURCE: PRODUCT DOSSIER

Used for villa complexes and municipal construction, hotels and airports, prisons and tourist attractions.

Low-carbon or stainless steel wire (welded mesh panel)Steel pipe posts

KEY FEATURES

Peach-post: no screws or bolts needed between mesh and column

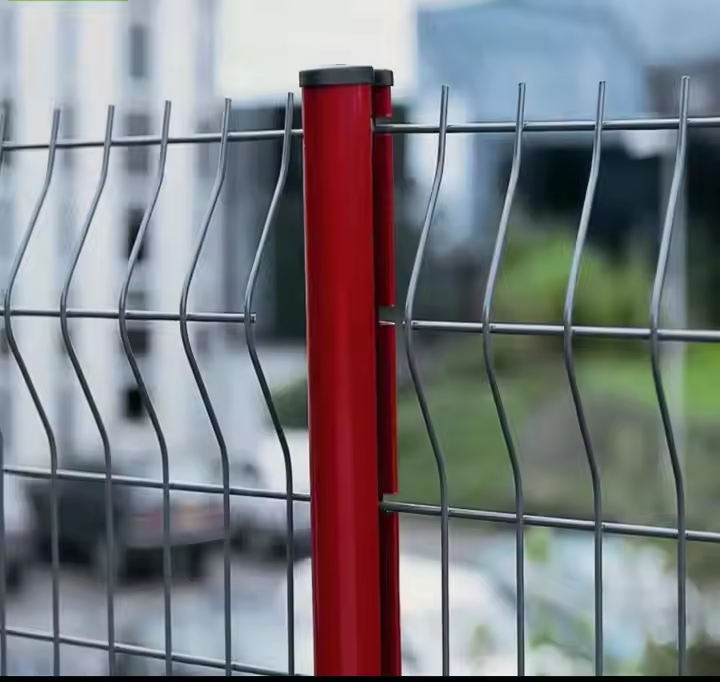

Round-pipe post: mesh and column connected by other fastening methods

Light yet durable

V-shaped reinforcement ribs across the mesh face for strong overall rigidity and impact resistance

PVC coating holds color long-term with strong corrosion and weather resistance

Quick to install with a complete accessory set and low maintenance cost

Request a Quote for 3D Curved Fence Download Catalog

Specifications

Materials	Low-carbon or stainless steel wire (welded mesh panel); Steel pipe posts
Wire Diameter	4–6 mm
Mesh Size	55×100, 50×200, 55×200
Surface Treatments	Hot-dip galvanized; Galvanized + powder coated; Galvanized + PVC coated
Colors	RAL 6005 green; RAL 7016 gray; Custom RAL on request
Panel Height (M)	0.8–2.4 (catalog); Word-doc source previously listed 1.5–2.5 — please confirm which is current
Panel Width (M)	2, 2.5, 3
Post Types	Round 48/60mm; Square 50/60/80mm; Rectangular 40×60 to 80×100mm, wall 1.5–2.0mm
Post Accessories	Square post with rain cap and mounting accessories

Applications

Villa complexes and municipal construction

Hotels and airports

Prisons and tourist attractions

Factories

Residential communities

Schools

Municipal road perimeters

Production Video

3D Curved Fence · production line

Frequently Asked Questions

What's the difference between the peach-post and round-pipe post options?

Peach-post requires no screws or bolts between mesh and column for a cleaner installation; round-pipe post connects the bent mesh to a square column using other fastening methods.

What colors are available?

RAL 6005 green and RAL 7016 gray are standard; any RAL color can be custom matched.
